DUBLIN PEDESTRIAN BRIDGE

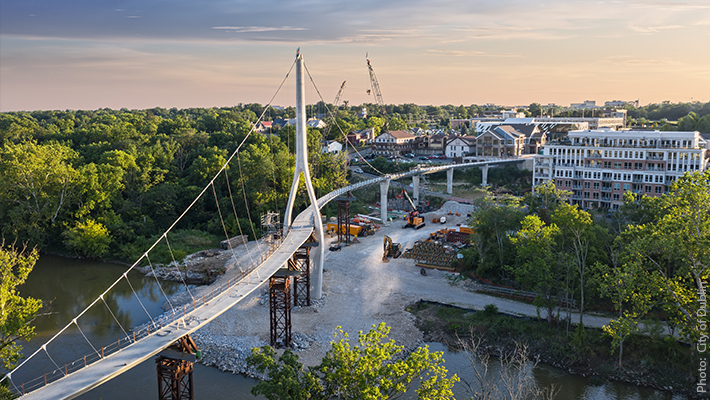

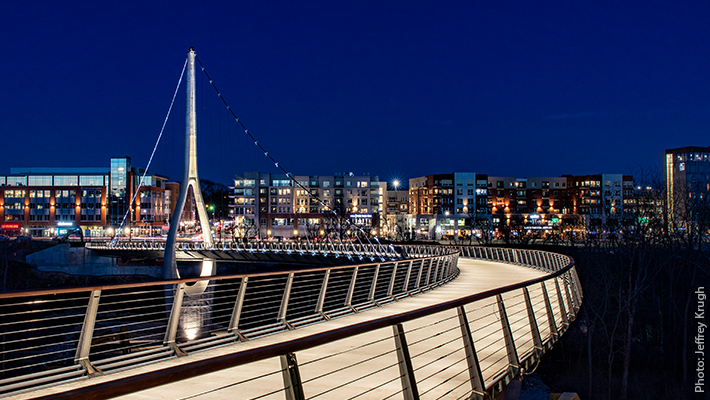

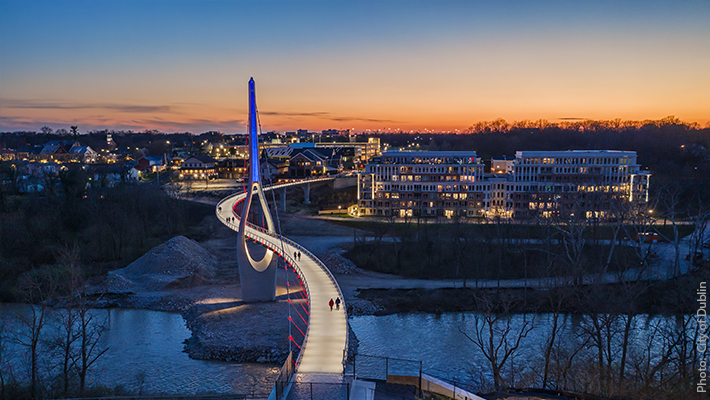

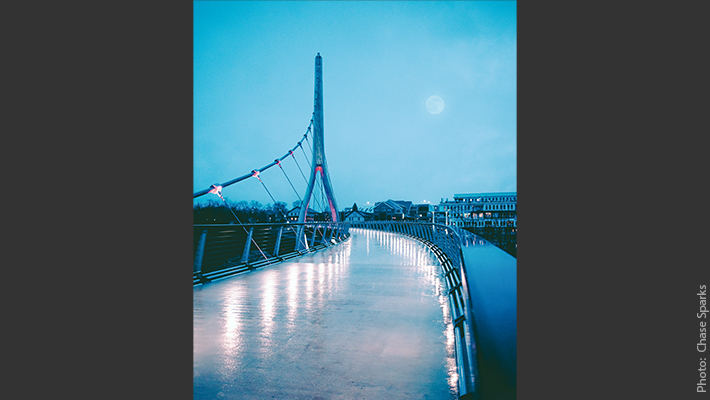

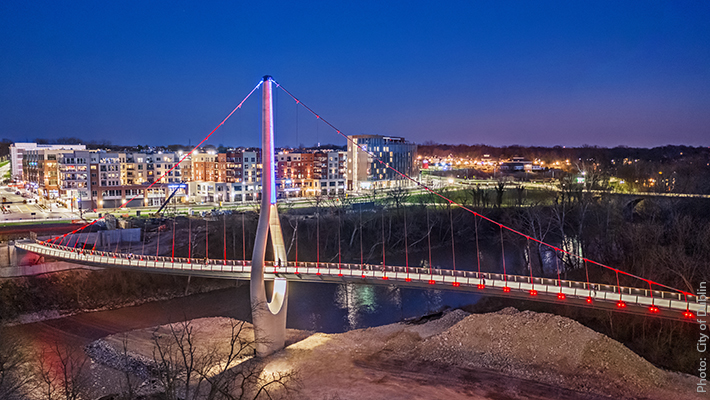

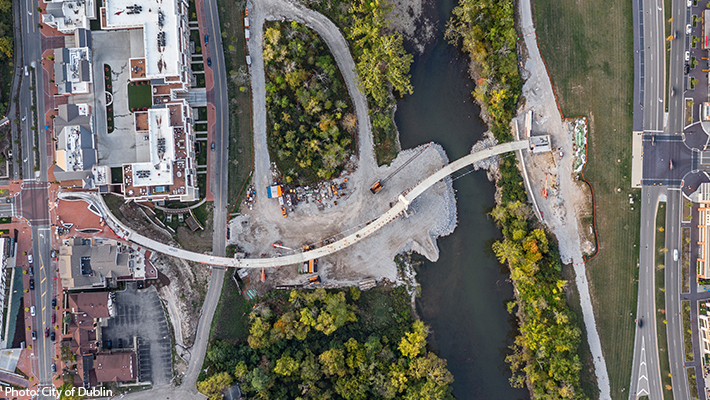

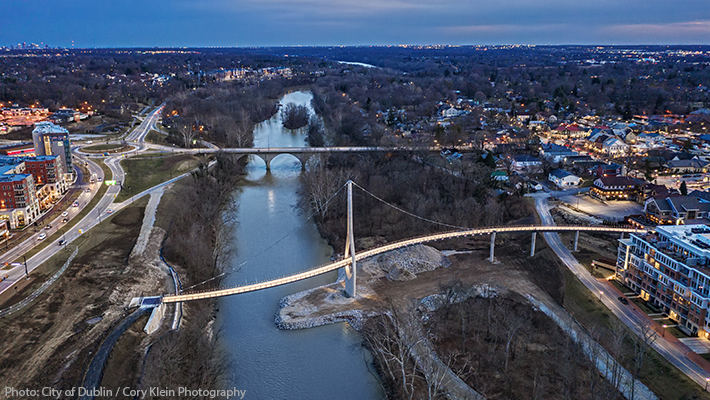

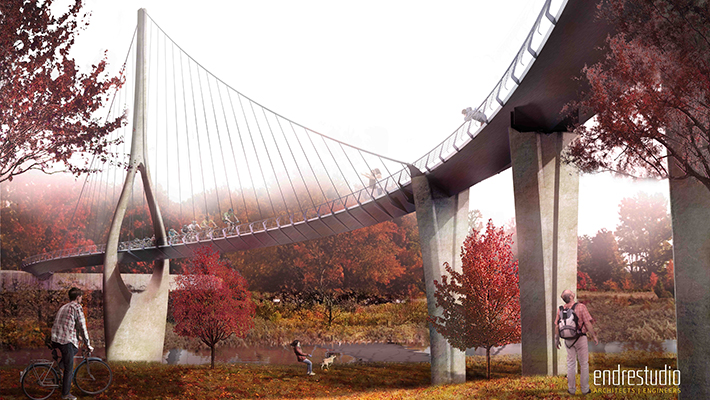

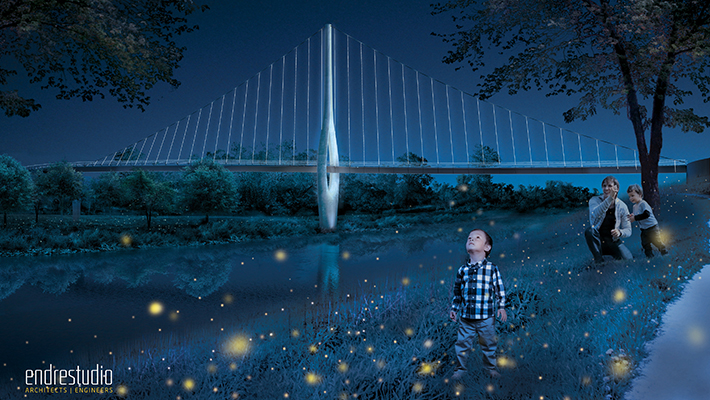

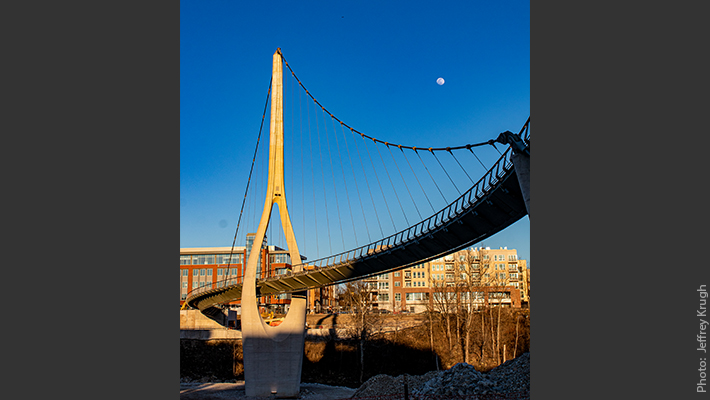

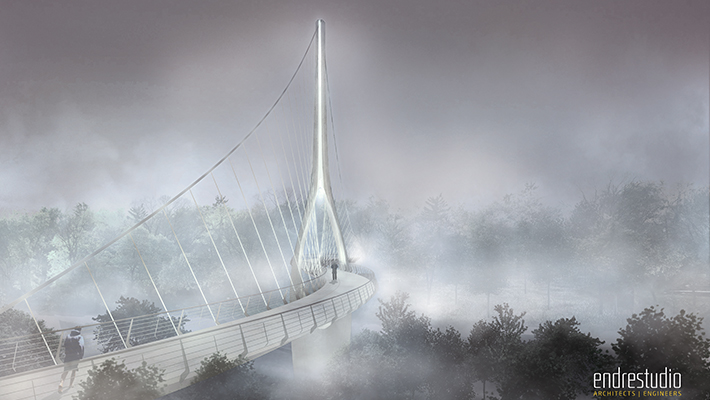

This span is an iconic connection between the historic district of the City of Dublin and a new commercial district across the Scioto River to the east, enhancing the character of the surrounding historic neighborhood with a modern iconic element. The bridge connects parkland 40 feet below the bridge deck with the eastern bank of the Scioto. Located in the Midwest, the design is for a two span (350-foot each), 700-foot total length, single tower, 14 foot wide pedestrian bridge. The bridge deck is “S” shaped in plan with a radius of 500 foot. The bridge is anchored into the earth at the embankments.
